The main purpose of this site is to extend the intraoperative monitoring to include the neurophysiologic parameters with intraoperative navigation guided with Skyra 3 tesla MRI and other radiologic facilities to merge the morphologic and histochemical data in concordance with the functional data.
CNS Clinic
Located in Jordan Amman near Al-Shmaisani hospital, where all ambulatory activity is going on.
Contact: Tel: +96265677695, +96265677694.

Skyra running
A magnetom Skyra 3 tesla MRI with all clinical applications started to run in our hospital in 28-October-2013.
Shmaisani hospital
The hospital where the project is located and running diagnostic and surgical activity.



NORAS 8 Ch OR Head Coil



The OR Head Coil, 3T, is designed for magnetic resonance examination during neuro-surgical surgery at the opened cranium. The NORAS Head Holder serves the secure fixation of the patient head. Thanks to its two-part construction, after removal of the upper section, this coil offers unobstructed access to the area of interest for the surgeon during the operation. The upper section is then reinstalled in the identical position for intraoperative or final imaging. This ensures optimum comparability of the images. This product enables MR supported, neurosurgical interventions with unmatched precision as well as minimum limitations for the surgeon. The OR Head Coil mounted in the head clamp consists of an 8 channel array coil, a 4 channel array in the upper half and a 4 channel array in the lower half. During the operation the upper half of the coil is removed to provide better access to the region of interest for the surgeon.
An interface to Brainsuite permits intraoperative neuronavigation. A wide selection of operation accessories may be utilized thanks to individually adapted interfaces.

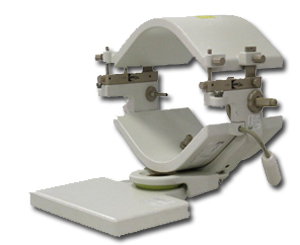

NORAS head coil 8 channel

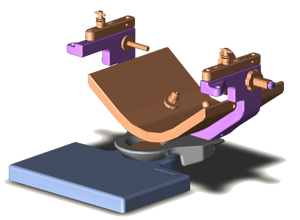

The upper part is removed.

Sterilization case


NORAS 8 Ch Multifunctional Coil (CPC)


The coil pair can be employed as an 8-Channel coil for many different areas, e.g. for extremity examinations in orthopedics. Thanks to its flexibility, the coils can nicely be positioned at different regions of the human body. The special coil configuration enables parallel imaging in different directions up to a factor of 6. The coil elements are freely movable within two axis, P/A-Head-Feet and P/A-Left-Right each 360°. A special arrangement of the coils allow Parallel Imaging".

NORAS Orthopedic Joint Bars for motion studies

NORAS MRI Trolley

NORAS Flex Retainer

NORAS Vacuum Immobilization Mattresses

For more details please refer to NORAS.

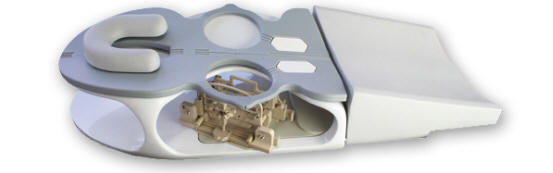

NORAS 4 Ch Breast Coil




TIM Compatible.

BI320-PA Patient Rest for breast biopsy and diagnostic with Siemens-MRT
Beside the NORAS 4 Ch Breast Coil, there is established Patient Rest with rotating Breast Biopsy Device separately. It can be used in combination with Siemens ring and surface coils or with the spinal coil integrated in the table.
BI320 Biopsy Immobilization and Positioning System
The further development of the worlds leading BI160 series of NORAS is established. Together with the NORAS 4 Ch Breast Coil, Siemens 4 Ch Breast Coil or the NORAS Patient Rest BI320-PA the Biopsy Unit provides a generous and simple working process.
BI160 Biopsy Immobilization and Positioning System
Immobilization of the female breast for diagnostic examination and biopsy is one of the primary areas of activity of the NORAS Company. In 1996, the predecessor of this device was submitted for patent. Up to now almost 1000 such devices have been sold worldwide. Based on the resulting clinical experience, this device has been further developed.


MIYABI Table




MIYABI trolley




This is a neurosurgical site dedicated to intraoperative monitoring to catch in time the early signs of possible functional complications before they evolve to morphologic ones.



Complications in neurosurgery

So as to have a digital data, the best ever made Inomed Highline ISIS system was put in service to provide documented information about the complications.

Directed by Prof. Munir Elias

Team in action.

Starting from July-2007 all the surgical activities of Prof. Munir Elias will be guided under the electrophysiologic control of ISIS- IOM



ISIS-IOM Inomed Highline
